Configuring Custom Postback URL | Webhooks

A webhook, or the Uptime.com Custom Postback URL, allows you to push alerts to any third party system that can expect to receive an application/json encoded payload in the body of a request.

Webhooks are useful for managing alert data internally, and creating a history of specific alerts with the metrics your team needs to know. Unlike specific integrations, which handle data output for visualizing metrics, webhooks require administrators to maintain their own system for translating and receiving this data.

Integration Functionality

  • Receive an HTTP POST in a JSON serialized string containing the expected results
  • Post data received to a third party URL

Integration Setup

The Custom Postback URL first requires you to create your own website or web application. You will need to setup a handler, accessible by a public URL which you enter into the URL field. We will then POST the alert data in JSON format to this URL.

Servers can expect to receive these keys in the HTTP POST in a JSON serialized string:

{
    "data": {
        "account": {
            "brand": "uptime",
            "site_url": "https://uptime.com",
            "id": 76424,
            "name": "NAME"
        },
        "service": {
            "msp_use_ip_version": "",
            "msp_dns_record_type": "",
            "monitoring_service_type": "HTTP",
            "msp_expect_string_type": "STRING",
            "id": 303856,
            "msp_include_in_global_metrics": true,
            "display_name": "Check designed to fail",
            "msp_url_path": "",
            "msp_address": "http://URL.com",
            "msp_protocol": "",
            "msp_threshold": 40,
            "msp_url_scheme": "http",
            "msp_port": null,
            "short_name": "Check designed to fail",
            "msp_expect_string": "",
            "msp_notes": "",
            "monitoring_service_type_display": "HTTP(S)",
            "msp_send_string": "",
            "msp_encryption": "",
            "device_id": 195337,
            "is_paused": false,
            "msp_dns_server": "",
            "msp_username": "",
            "name": "Check designed to fail",
            "msp_sensitivity": 2,
            "msp_interval": 5
        },
        "integration": {
            "is_enabled": true,
            "module_verbose_name": "Custom Postback URL (Webhook)",
            "name": "Hello World",
            "use_legacy_payload": false,
            "id": 1313,
            "module": "webhook",
            "postback_url": "https://engal31sjcwpi.x.pipedream.net/"
        },
        "locations": [
            "US-East",
            "US-West"
        ],
        "device": {
            "is_paused": false,
            "address": "URL.com",
            "display_name": "URL.com",
            "id": 195337,
            "name": ""
        },
        "global_alert_state": {
            "ignored": false,
            "state_has_changed": true,
            "created_at": "2019-04-09T17:18:38.991Z",
            "state_is_up": false,
            "num_locations_down": 2,
            "id": 67726495
        },
        "date": "2019-04-09T17:18:38.991Z",
        "alert": {
            "created_at": "2019-04-09T17:18:38.991Z",
            "state": "CRITICAL",
            "short_output": "Name or service not known\nHTTP CRITICAL - Unable to open TCP socket",
            "is_up": false,
            "output": "Name or service not known\nHTTP CRITICAL - Unable to open TCP socket",
            "id": 67503555
        }
    },
    "event": "alert_raised"
}

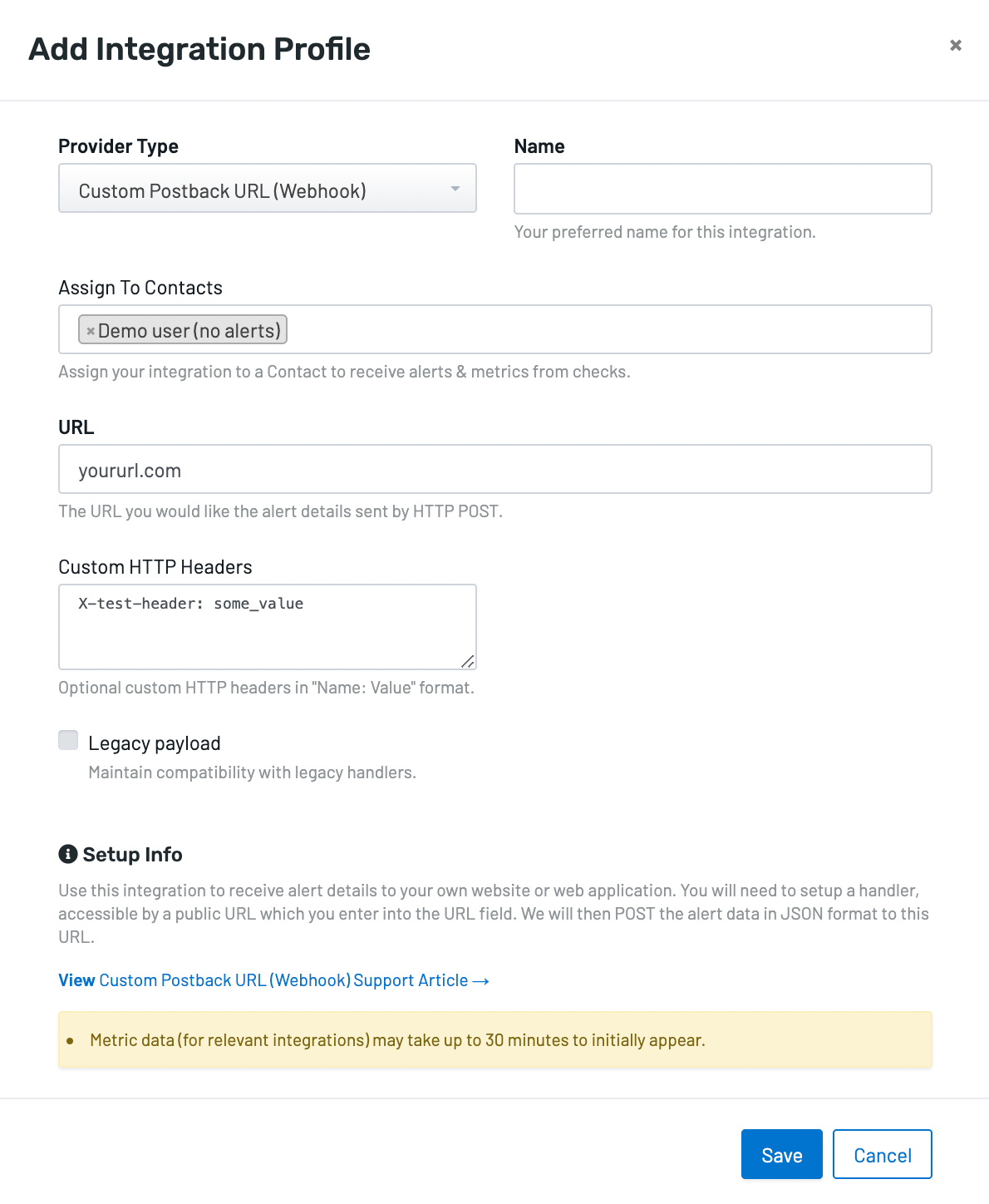

Basic setup requires a name for your integration, and the URL that will receive the HTTP POST from Uptime.com.


Once you've configured your Custom Postback URL, you will need to assign it to a contact and make sure that contact is notified when a Check fails.

Assign Integration to Existing Contacts

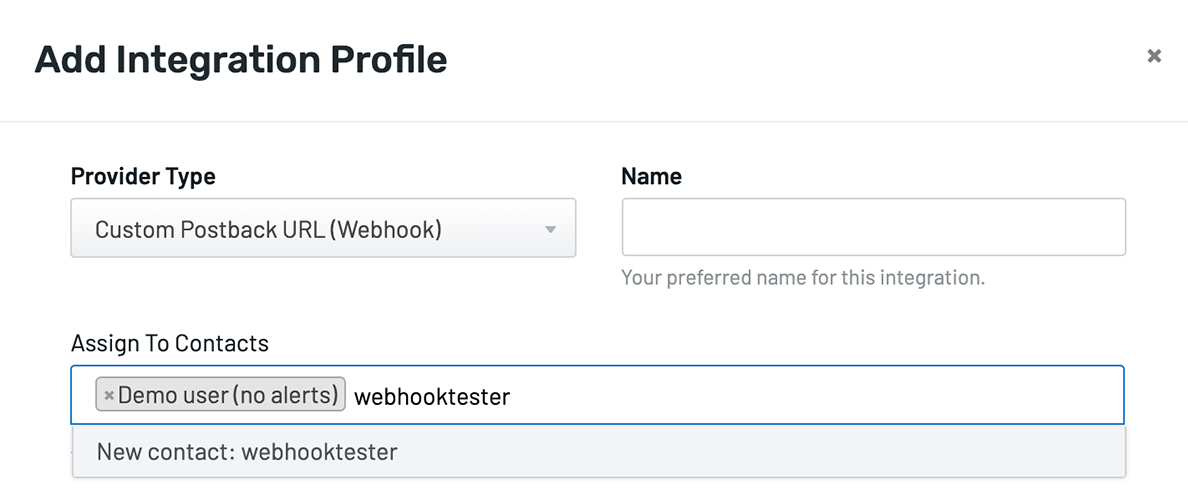

To add your integration to an existing contact, click on or type the name of the contact into the Assign to Contacts field within the integration setup screen.


Create New Contacts for the Integration

Adding a dedicated or new contact cannot be done within the integrations screen. To do so first, click Notifications>Contacts. You can select New Contact, or add your integration to an existing contact.

Select your Custom Postback URL from the Push Notifications field within the New Contact screen.

Assign Integration Contact to a Check

If you have created a new or dedicated contact for your integration, you will need to add it to specific checks. If you have assigned the integration to a contact that is already assigned to one (or more) checks, you may skip this step.

Return to your Check’s Edit screen and assign this contact to the Contacts field to be notified of a downtime event. Alert data will appear in real time.

Test Your Integration

Test your integration with one of the following two options:

  1. Force the Check assigned to your Integration to fail by altering it (HTTPS checks can use a misspelling of the domain, for example)

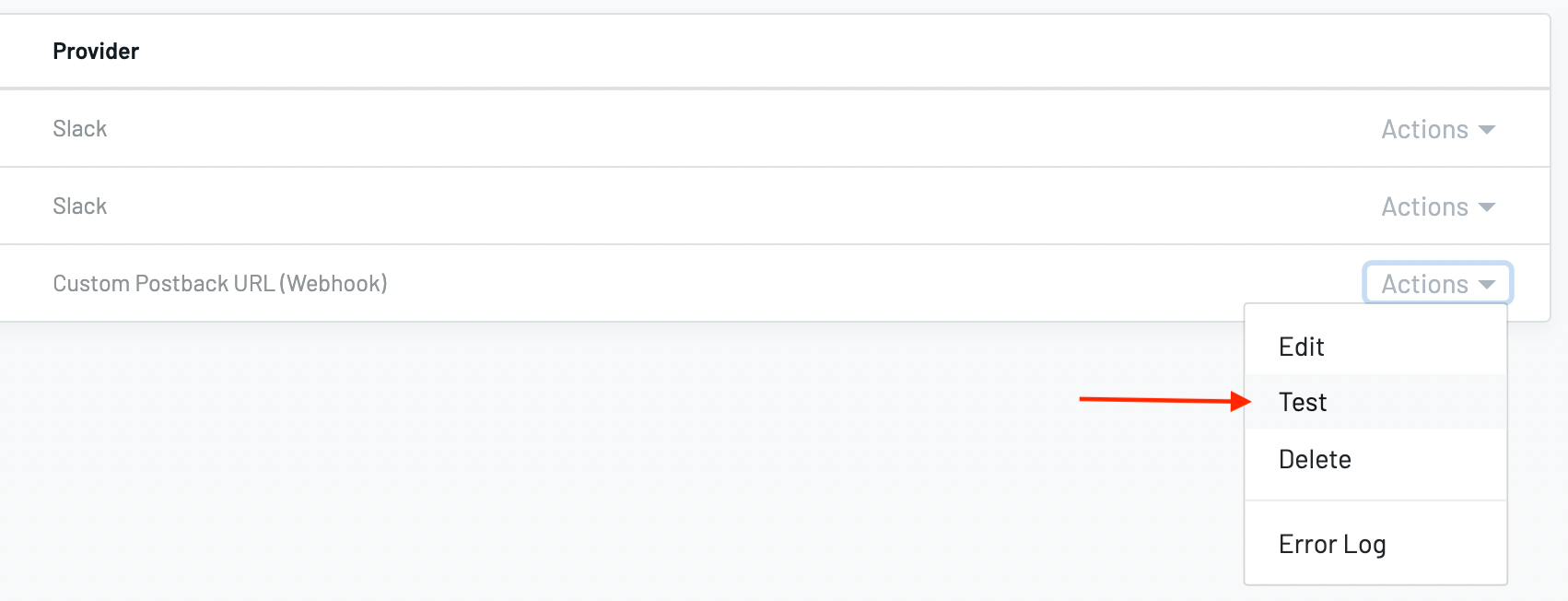

  2. Click Notifications>Contacts, then click Actions>Test to send a test to the Contact
